Trouble-free repeated slat cleaning
With its automatic forward feed, operation of the slat cleaner is a breeze
High working speed
Adapts automatically to different slag thicknesses
Cleaning takes place while productions is running (on flatbed laser machines with a pallet changer)
Possibility of one-man operation
Machine available as electric-version

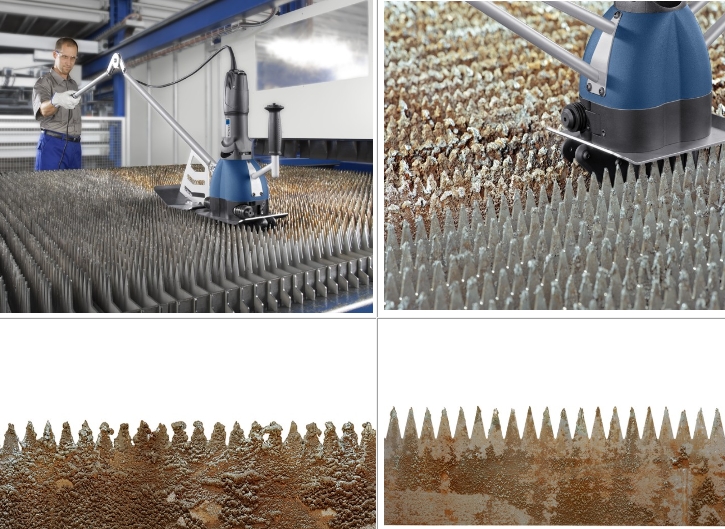

With the TruTool TSC you can clean the slats of your flatbed laser machine quickly and reliably. Two pairs of rollers break down the slag, adjusting automatically to a great variety of slag thickness.
In this way, even heavily loaded slats are no longer a problem and the slats can be cleaned several times before you have to replace them. For flatbed laser machines with palett changers, the cleaning takes place without downtime. You do not even have to disassemble the slats for this purpose.

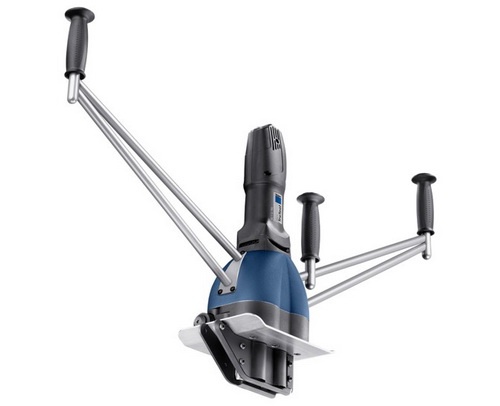

TruTool TSC 2
Support slats thickness 2 mm - 3,9 mm
Max. slag thickness 15 (25) mm
Min. spacing between support slats 33,5 mm
Working speed 8-10 m/min
Rated input power 1400 W
Weight (without cable) 13 kg
Included accessories
Crushing rollers integrated
Finishing rollers No. 3 integrated
Front handle, complete integrated
Rear handle, complete integrated
Grease gun (filled) 1369906
Grease "G1" 250 g 1446686
Hexagon head screw 0369003
Machine stand 1443533
Available accessories
Tool set No. 2 (2 - 2.9 mm) 2 crushing rollers, 2 finishing rollers No. 2, protective plate left / right, brush set 1472196
Tool set No. 3 (3 - 3.9 mm) 2 crushing rollers, 2 finishing rollers No. 3, protective plate left / right, brush set 1472194
Crushing rollers (set of 2, 1472177)
Finishing rollers No. 2 (2 - 2.9 mm) (set of 2, 1422193)
Finishing rollers No. 3 (3 - 3.9 mm) (set of 2, 1472197)
Protective plate set (1 x protective plate left / right) 1374878
Brush set 1472175
Grease "G1" 900 g 0139440
Carbon brush (set of 2) 110 - 120 V 0349442
Carbon brush (set of 2) 220 - 230 V 0349350
Further options
One man handle 1510611
Cable holder DE 1374761
Cable holder CH 1374762
Cable holder without cable (for cleaning dismounted slats) 1358686
Construction drawing for work station 1366684
